SCARA Motion Trajectory Studio & Streamer
scarajectory is a standalone CAD/CAM motion planning, kinematic validation, and real-time trajectory streaming software for SCARA robotic manipulators.
Developed in python code.
The README is used to introduce the modules and provide instructions on how to install the modules, any machine dependencies it may have and any other information that should be provided before the modules are installed.
Table of Contents
- 🚀 Installation
- 📦 Dependencies
- 📁 Tool structure
- 📊 Code coverage
- 🛠 Usage
- 📚 Docs
- 👥 Contributing
- 📄 Copyright and licence
🚀 Installation

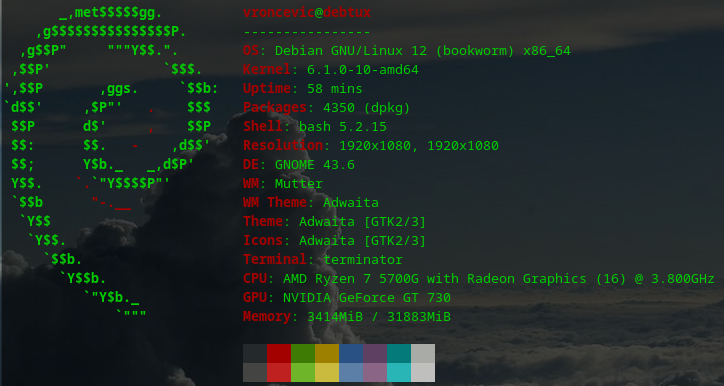

Used next development environment
Currently there are three ways to install package
- Install process based on using pip mechanism
- Install process based on build mechanism
- Install process based on setup.py mechanism
- Install process based on docker mechanism
Install using pip
scarajectory is located at pypi.org.
You can install by using pip
# python3
pip3 install scarajectory
Install using build
Navigate to release page download and extract release archive.
To install scarajectory type the following
tar xvzf scarajectory-x.y.z.tar.gz
cd scarajectory-x.y.z/
# python3
wget https://bootstrap.pypa.io/get-pip.py
python3 get-pip.py
python3 -m pip install --upgrade setuptools
python3 -m pip install --upgrade pip
python3 -m pip install --upgrade build
pip3 install -r requirements.txt
python3 -m build --no-isolation --wheel
pip3 install ./dist/scarajectory-*-py3-none-any.whl
rm -f get-pip.py
chmod 755 /usr/local/lib/python3.10/dist-packages/usr/local/bin/scarajectory_run.py
ln -s /usr/local/lib/python3.10/dist-packages/usr/local/bin/scarajectory_run.py /usr/local/bin/scarajectory_run.py
Install using py setup
Navigate to release page download and extract release archive.
To install scarajectory locate and run setup.py with arguments
tar xvzf scarajectory-x.y.z.tar.gz
cd scarajectory-x.y.z
# python3
pip3 install -r requirements.txt
python3 setup.py install_lib
python3 setup.py install_egg_info
Install using docker
You can use Dockerfile to create image/container.
📦 Dependencies
scarajectory requires next modules and libraries
📁 Tool structure
scarajectory is based on OOP and Clean Architecture.
Tool structure
Click to expand framework structure</summary>
scarajectory/
├── core/
│ ├── __init__.py
│ ├── model/
│ │ ├── canvas_interaction_state.py
│ │ ├── canvas_settings_dto.py
│ │ ├── canvas_tool_mode.py
│ │ ├── __init__.py
│ │ ├── itrajectory_plan.py
│ │ ├── plan_history.py
│ │ ├── point_dto.py
│ │ ├── scara_bounds.py
│ │ ├── stream_config_dto.py
│ │ ├── stream_progress.py
│ │ ├── stream_state.py
│ │ ├── trajectory_metrics.py
│ │ ├── trajectory_plan.py
│ │ ├── trajectory_serializer.py
│ │ ├── validation_result_dto.py
│ │ ├── viewport_transform.py
│ │ └── waypoint.py
│ └── service/
│ ├── engine.py
│ ├── __init__.py
│ ├── iplan_storage_service.py
│ ├── iservice.py
│ ├── istream_observer.py
│ ├── itrajectory_observer.py
│ ├── itrajectory_streamer.py
│ ├── itrajectory_validator.py
│ ├── plan_storage_service.py
│ └── trajectory_validator.py
├── engine.py
├── infrastructure/
│ ├── cli/
│ │ ├── engine.py
│ │ ├── icli.py
│ │ ├── __init__.py
│ │ └── setup/
│ │ ├── bundle.py
│ │ ├── dep_validator.py
│ │ ├── dependencies.py
│ │ ├── factory.py
│ │ ├── __init__.py
│ │ ├── keys.py
│ │ ├── opt_validator.py
│ │ ├── options.py
│ │ ├── registry.py
│ │ └── validator.py
│ ├── command/
│ │ ├── command.py
│ │ ├── icommand_definition.py
│ │ ├── icommand_executor.py
│ │ ├── __init__.py
│ │ ├── studio_command_definition.py
│ │ └── studio_command_executor.py
│ ├── communication/
│ │ ├── __init__.py
│ │ ├── protocol/
│ │ │ ├── command_formatter.py
│ │ │ ├── command_templates.py
│ │ │ ├── __init__.py
│ │ │ ├── protocol_parser.py
│ │ │ └── robot_response_dto.py
│ │ ├── serial_port_scanner.py
│ │ ├── serial_streamer.py
│ │ ├── stream_session.py
│ │ └── transport/
│ │ ├── __init__.py
│ │ ├── itransport.py
│ │ ├── serial_transport.py
│ │ └── tcp_transport.py
│ ├── config/
│ │ ├── scara_geometry.json
│ │ ├── scarajectory.cfg
│ │ ├── scarajectory.logo
│ │ └── scheme.json
│ ├── gui/
│ │ ├── canvas.py
│ │ ├── components/
│ │ │ ├── canvas_renderer.py
│ │ │ ├── canvas_tool_handler.py
│ │ │ ├── __init__.py
│ │ │ ├── jog_tab.py
│ │ │ ├── menu_bar.py
│ │ │ ├── preview_tab.py
│ │ │ ├── serial_console.py
│ │ │ ├── stream_status_bar.py
│ │ │ ├── streamer_tab.py
│ │ │ ├── toolbar.py
│ │ │ ├── validation_tab.py
│ │ │ └── waypoint_editor.py
│ │ ├── controls.py
│ │ ├── engine.py
│ │ ├── icanvas.py
│ │ ├── icontrols.py
│ │ ├── igui.py
│ │ ├── __init__.py
│ │ ├── itable.py
│ │ ├── table.py
│ │ └── theme.py
│ └── __init__.py
├── __init__.py
├── py.typed
└── setup/
├── bundle.py
├── dep_validator.py
├── dependencies.py
├── factory.py
├── __init__.py
├── keys.py
├── opt_validator.py
├── options.py
├── registry.py
└── validator.py
15 directories, 100 files
</details>
🏗 Architecture & SOLID Principles
┌──────────────────────────────┐
│ ScarajectoryGUI │ (Presenter / Controller)
└──────────────┬───────────────┘
│ Uses DTOs (StreamConfigDTO, CanvasSettingsDTO)
┌───────────────────────┼───────────────────────┐
│ │ │
▼ ▼ ▼
┌──────────────────┐ ┌─────────────────┐ ┌──────────────────┐
│ TrajectoryCanvas │ │ TrajectoryTable │ │ TrajectoryPlan │ (Domain Model)
└──────────────────┘ └─────────────────┘ └────────┬─────────┘
(Vector CAD) (Data Grid) │
▲ ▲ │
└───────────┬───────────┘ │
│ (itrajectory_observer.py) │
└──────────────────────────────────┤
▼
┌────────────────────────┐
(Interface Segregation) │ itrajectory_validator │
└──────────┬─────────────┘
│ Uses PointDTO
▼
┌────────────────────────┐
│ trajectory_validator │ (Reachability Engine)
└────────────────────────┘
✨ Features

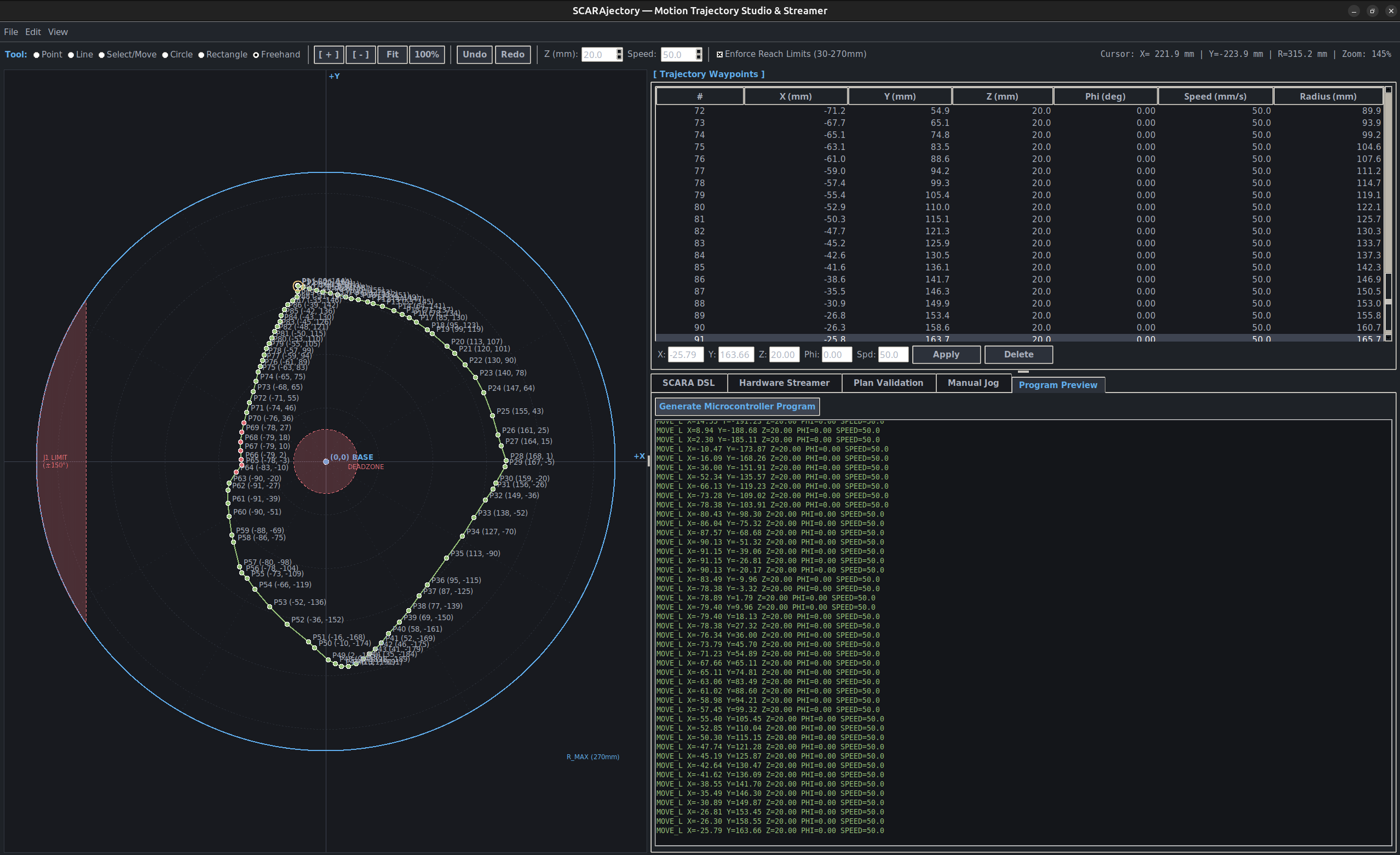

- Interactive Vector CAD Editor: Real-time vector drafting with dedicated Point, Line, Rectangle, Circle, and Freehand tools with live vertex dragging and viewport zoom/pan.
-
Kinematic Reachability & Deadzone Enforcement: Annular geometric validation ensuring trajectories stay within reachable workspace boundaries ($R_{min} =
L_1 - L_2
$, $R_{max} = L_1 + L_2$).
- Undo / Redo Transaction Stack: Non-destructive history management for waypoint additions, modifications, insertions, and deletions (
Ctrl+Z, Ctrl+Y).
- ASCII Protocol Generation: Generates micro-command streaming packets for RP2040 firmware (
<pt#X#Y#Z#PHI#SPEED#end>).
- Sliding Window Hardware Streaming: Multi-threaded USB serial (
/dev/ttyACM0) and TCP socket streaming with dynamic ACK tracking, auto-pause on buffer full, and progress monitoring.
- Manual Jogging & Diagnostics: Interactive jog grid (X, Y, Z, Phi), vacuum pump and release valve toggles, homing, status queries, and raw serial command console.
- Configurable Kinematics & Dimensions: Dynamic robot link lengths ($L_1, L_2$), stroke limits ($Z_{min}, Z_{max}$), and speed bounds configurable via CLI options and JSON schema.
- Strict Quality & SOLID Standards: 100% protocol conformity, zero ISP/SRP violations, 81% test coverage, and 10.00 / 10.00 Pylint score.
📐 SCARA Kinematic & Geometric Configuration
The robot dimensions and physical boundaries can be customized in scara_geometry.json or injected programmatically:
Parameter
Default Value
Description
l1150.0 mmPrimary arm link length (shoulder to elbow).
l2120.0 mmSecondary arm link length (elbow to wrist).
r_min30.0 mmInner singular deadzone radius ($
L_1 - L_2
$).
r_max270.0 mmMaximum horizontal reach boundary ($L_1 + L_2$).
z_min0.0 mmMinimum vertical height limit (bed level).
z_max100.0 mmMaximum vertical stroke limit.
min_speed1.0 mm/sMinimum allowable feedrate speed.
max_speed100.0 mm/sMaximum allowable safe feedrate speed.
📊 Code coverage
Click to expand code coverage</summary>
Name
Stmts
Miss
Cover
scarajectory/__init__.py9
0
100%
scarajectory/core/__init__.py9
0
100%
scarajectory/core/model/__init__.py9
0
100%
scarajectory/core/model/canvas_interaction_state.py26
0
100%
scarajectory/core/model/canvas_settings_dto.py15
0
100%
scarajectory/core/model/canvas_tool_mode.py17
0
100%
scarajectory/core/model/itrajectory_plan.py31
0
100%
scarajectory/core/model/plan_history.py34
1
97%
scarajectory/core/model/point_dto.py18
0
100%
scarajectory/core/model/scara_bounds.py18
0
100%
scarajectory/core/model/stream_config_dto.py15
0
100%
scarajectory/core/model/stream_progress.py25
3
88%
scarajectory/core/model/stream_state.py17
0
100%
scarajectory/core/model/trajectory_metrics.py37
7
81%
scarajectory/core/model/trajectory_plan.py100
14
86%
scarajectory/core/model/trajectory_serializer.py29
0
100%
scarajectory/core/model/validation_result_dto.py15
0
100%
scarajectory/core/model/viewport_transform.py48
0
100%
scarajectory/core/model/waypoint.py42
4
90%
scarajectory/core/service/__init__.py9
0
100%
scarajectory/core/service/engine.py45
3
93%
scarajectory/core/service/iplan_storage_service.py16
0
100%
scarajectory/core/service/iservice.py26
0
100%
scarajectory/core/service/istream_observer.py15
0
100%
scarajectory/core/service/itrajectory_observer.py14
0
100%
scarajectory/core/service/itrajectory_streamer.py25
0
100%
scarajectory/core/service/itrajectory_validator.py18
0
100%
scarajectory/core/service/plan_storage_service.py17
0
100%
scarajectory/core/service/trajectory_validator.py69
9
87%
scarajectory/engine.py64
30
53%
scarajectory/infrastructure/__init__.py9
0
100%
scarajectory/infrastructure/cli/__init__.py9
0
100%
scarajectory/infrastructure/cli/engine.py39
7
82%
scarajectory/infrastructure/cli/icli.py15
0
100%
scarajectory/infrastructure/cli/setup/__init__.py9
0
100%
scarajectory/infrastructure/cli/setup/bundle.py22
1
95%
scarajectory/infrastructure/cli/setup/dep_validator.py36
5
86%
scarajectory/infrastructure/cli/setup/dependencies.py18
0
100%
scarajectory/infrastructure/cli/setup/factory.py37
1
97%
scarajectory/infrastructure/cli/setup/keys.py28
0
100%
scarajectory/infrastructure/cli/setup/opt_validator.py36
5
86%
scarajectory/infrastructure/cli/setup/options.py17
0
100%
scarajectory/infrastructure/cli/setup/registry.py24
1
96%
scarajectory/infrastructure/cli/setup/validator.py43
5
88%
scarajectory/infrastructure/command/__init__.py9
0
100%
scarajectory/infrastructure/command/command.py16
0
100%
scarajectory/infrastructure/command/icommand_definition.py14
0
100%
scarajectory/infrastructure/command/icommand_executor.py14
0
100%
scarajectory/infrastructure/command/studio_command_definition.py24
1
96%
scarajectory/infrastructure/command/studio_command_executor.py38
15
61%
scarajectory/infrastructure/communication/__init__.py9
0
100%
scarajectory/infrastructure/communication/protocol/__init__.py8
0
100%
scarajectory/infrastructure/communication/protocol/command_formatter.py58
9
84%
scarajectory/infrastructure/communication/protocol/command_templates.py35
2
94%
scarajectory/infrastructure/communication/protocol/protocol_parser.py64
17
73%
scarajectory/infrastructure/communication/protocol/robot_response_dto.py17
0
100%
scarajectory/infrastructure/communication/serial_port_scanner.py36
7
81%
scarajectory/infrastructure/communication/serial_streamer.py150
83
45%
scarajectory/infrastructure/communication/stream_session.py18
0
100%
scarajectory/infrastructure/communication/transport/__init__.py8
0
100%
scarajectory/infrastructure/communication/transport/itransport.py19
0
100%
scarajectory/infrastructure/communication/transport/serial_transport.py104
63
39%
scarajectory/infrastructure/communication/transport/tcp_transport.py120
80
33%
scarajectory/infrastructure/gui/__init__.py9
0
100%
scarajectory/infrastructure/gui/canvas.py170
92
46%
scarajectory/infrastructure/gui/components/__init__.py9
0
100%
scarajectory/infrastructure/gui/components/canvas_renderer.py79
23
71%
scarajectory/infrastructure/gui/components/canvas_tool_handler.py42
0
100%
scarajectory/infrastructure/gui/components/jog_tab.py67
8
88%
scarajectory/infrastructure/gui/components/menu_bar.py75
14
81%
scarajectory/infrastructure/gui/components/preview_tab.py32
4
88%
scarajectory/infrastructure/gui/components/serial_console.py34
6
82%
scarajectory/infrastructure/gui/components/stream_status_bar.py29
4
86%
scarajectory/infrastructure/gui/components/streamer_tab.py96
31
68%
scarajectory/infrastructure/gui/components/toolbar.py73
9
88%
scarajectory/infrastructure/gui/components/validation_tab.py35
5
86%
scarajectory/infrastructure/gui/components/waypoint_editor.py71
17
76%
scarajectory/infrastructure/gui/controls.py44
3
93%
scarajectory/infrastructure/gui/engine.py98
19
81%
scarajectory/infrastructure/gui/icanvas.py20
0
100%
scarajectory/infrastructure/gui/icontrols.py16
0
100%
scarajectory/infrastructure/gui/igui.py17
0
100%
scarajectory/infrastructure/gui/itable.py14
0
100%
scarajectory/infrastructure/gui/table.py77
29
62%
scarajectory/infrastructure/gui/theme.py58
0
100%
scarajectory/setup/__init__.py9
0
100%
scarajectory/setup/bundle.py25
1
96%
scarajectory/setup/dep_validator.py36
5
86%
scarajectory/setup/dependencies.py21
0
100%
scarajectory/setup/factory.py84
4
95%
scarajectory/setup/keys.py37
0
100%
scarajectory/setup/opt_validator.py36
5
86%
scarajectory/setup/options.py20
0
100%
scarajectory/setup/registry.py34
1
97%
scarajectory/setup/validator.py53
5
91%
Total
3455
658
81%
</details>
🛠 Usage
Install package
pip3 install scarajectory
Prepare main entry point by downloading main.py or create your own.
wget -O main.py https://raw.githubusercontent.com/vroncevic/scarajectory/main/main.py
CLI Command Options
Launch the graphical studio with default configuration:
python3 main.py studio
Launch with initial trajectory plan file and disabled deadzone restriction:
python3 main.py studio --file ./trajectories/rectangle_demo.json --dead-zone disable --verbose enable
Option
Type
Choices
Description
--filestrFile path
Path to initial trajectory JSON plan file to load on startup.
--dead-zonestrenable, disableEnable or disable inner deadzone geometric validation ($R_{min}$).
--verbosestrenable, disableEnable or disable verbose ATS operational logging.
Interactive Motion Planning Workflow
- Design Trajectory & Geometry:
- Use Point, Line, Rectangle, Circle, or Freehand tools directly on the interactive vector canvas.
- Fine-tune Cartesian parameters ($X, Y, Z, \phi, \text{speed}$) using the Waypoint Data Table or interactive vertex drag.
- Kinematic Validation:
- Open the Plan Validation tab and run validation against reachability limits ($L_1 = 150\text{ mm}, L_2 = 120\text{ mm}$).
- Verify total path length and estimated execution time.
- ASCII Program Preview:
- Inspect the formatted ASCII micro-command stream (
<pt#...#end>) under the Program Preview tab.
- Hardware Streaming & Execution:
- Connect to
/dev/ttyACM0 (or TCP host) under the Hardware Streamer tab.
- Trigger streaming to execute real-time motion on the physical SCARA robot.
- Manual Jogging & Diagnostics:
- Use the Manual Jog tab for directional jog movements, vacuum pump activation, release valve triggers, and homing.
📚 Docs
More documentation and info at
👥 Contributing
📄 Copyright and licence
Copyright (C) 2026 by vroncevic.github.io/scarajectory
scarajectory is free software; you can redistribute it and/or modify
it under the same terms as Python itself, either Python version 3.x or,
at your option, any later version of Python 3 you may have available.
Special thanks to Google and the Google developer ecosystem for their tremendous support and innovative tools from the Google bundle that empowered the development and realization of this project. Google, you make this world a better place! 🌍✨
Lets help and support PSF.
scarajectory/
├── core/
│ ├── __init__.py
│ ├── model/
│ │ ├── canvas_interaction_state.py
│ │ ├── canvas_settings_dto.py
│ │ ├── canvas_tool_mode.py
│ │ ├── __init__.py
│ │ ├── itrajectory_plan.py
│ │ ├── plan_history.py
│ │ ├── point_dto.py
│ │ ├── scara_bounds.py
│ │ ├── stream_config_dto.py
│ │ ├── stream_progress.py
│ │ ├── stream_state.py
│ │ ├── trajectory_metrics.py
│ │ ├── trajectory_plan.py
│ │ ├── trajectory_serializer.py
│ │ ├── validation_result_dto.py
│ │ ├── viewport_transform.py
│ │ └── waypoint.py
│ └── service/
│ ├── engine.py
│ ├── __init__.py
│ ├── iplan_storage_service.py
│ ├── iservice.py
│ ├── istream_observer.py
│ ├── itrajectory_observer.py
│ ├── itrajectory_streamer.py
│ ├── itrajectory_validator.py
│ ├── plan_storage_service.py
│ └── trajectory_validator.py
├── engine.py
├── infrastructure/
│ ├── cli/
│ │ ├── engine.py
│ │ ├── icli.py
│ │ ├── __init__.py
│ │ └── setup/
│ │ ├── bundle.py
│ │ ├── dep_validator.py
│ │ ├── dependencies.py
│ │ ├── factory.py
│ │ ├── __init__.py
│ │ ├── keys.py
│ │ ├── opt_validator.py
│ │ ├── options.py
│ │ ├── registry.py
│ │ └── validator.py
│ ├── command/
│ │ ├── command.py
│ │ ├── icommand_definition.py
│ │ ├── icommand_executor.py
│ │ ├── __init__.py
│ │ ├── studio_command_definition.py
│ │ └── studio_command_executor.py
│ ├── communication/
│ │ ├── __init__.py
│ │ ├── protocol/
│ │ │ ├── command_formatter.py
│ │ │ ├── command_templates.py
│ │ │ ├── __init__.py
│ │ │ ├── protocol_parser.py
│ │ │ └── robot_response_dto.py
│ │ ├── serial_port_scanner.py
│ │ ├── serial_streamer.py
│ │ ├── stream_session.py
│ │ └── transport/
│ │ ├── __init__.py
│ │ ├── itransport.py
│ │ ├── serial_transport.py
│ │ └── tcp_transport.py
│ ├── config/
│ │ ├── scara_geometry.json
│ │ ├── scarajectory.cfg
│ │ ├── scarajectory.logo
│ │ └── scheme.json
│ ├── gui/
│ │ ├── canvas.py
│ │ ├── components/
│ │ │ ├── canvas_renderer.py
│ │ │ ├── canvas_tool_handler.py
│ │ │ ├── __init__.py
│ │ │ ├── jog_tab.py
│ │ │ ├── menu_bar.py
│ │ │ ├── preview_tab.py
│ │ │ ├── serial_console.py
│ │ │ ├── stream_status_bar.py
│ │ │ ├── streamer_tab.py
│ │ │ ├── toolbar.py
│ │ │ ├── validation_tab.py
│ │ │ └── waypoint_editor.py
│ │ ├── controls.py
│ │ ├── engine.py
│ │ ├── icanvas.py
│ │ ├── icontrols.py
│ │ ├── igui.py
│ │ ├── __init__.py
│ │ ├── itable.py
│ │ ├── table.py
│ │ └── theme.py
│ └── __init__.py
├── __init__.py
├── py.typed
└── setup/
├── bundle.py
├── dep_validator.py
├── dependencies.py
├── factory.py
├── __init__.py
├── keys.py
├── opt_validator.py
├── options.py
├── registry.py
└── validator.py
15 directories, 100 files
┌──────────────────────────────┐
│ ScarajectoryGUI │ (Presenter / Controller)
└──────────────┬───────────────┘
│ Uses DTOs (StreamConfigDTO, CanvasSettingsDTO)
┌───────────────────────┼───────────────────────┐
│ │ │
▼ ▼ ▼
┌──────────────────┐ ┌─────────────────┐ ┌──────────────────┐
│ TrajectoryCanvas │ │ TrajectoryTable │ │ TrajectoryPlan │ (Domain Model)
└──────────────────┘ └─────────────────┘ └────────┬─────────┘
(Vector CAD) (Data Grid) │
▲ ▲ │
└───────────┬───────────┘ │
│ (itrajectory_observer.py) │
└──────────────────────────────────┤
▼
┌────────────────────────┐
(Interface Segregation) │ itrajectory_validator │
└──────────┬─────────────┘
│ Uses PointDTO
▼
┌────────────────────────┐
│ trajectory_validator │ (Reachability Engine)
└────────────────────────┘
| Kinematic Reachability & Deadzone Enforcement: Annular geometric validation ensuring trajectories stay within reachable workspace boundaries ($R_{min} = | L_1 - L_2 | $, $R_{max} = L_1 + L_2$). |
Ctrl+Z, Ctrl+Y).<pt#X#Y#Z#PHI#SPEED#end>)./dev/ttyACM0) and TCP socket streaming with dynamic ACK tracking, auto-pause on buffer full, and progress monitoring.scara_geometry.json or injected programmatically:l1150.0 mml2120.0 mmr_min30.0 mmr_max270.0 mmz_min0.0 mmz_max100.0 mmmin_speed1.0 mm/smax_speed100.0 mm/s
Click to expand code coverage</summary>
Name
Stmts
Miss
Cover
scarajectory/__init__.py9
0
100%
scarajectory/core/__init__.py9
0
100%
scarajectory/core/model/__init__.py9
0
100%
scarajectory/core/model/canvas_interaction_state.py26
0
100%
scarajectory/core/model/canvas_settings_dto.py15
0
100%
scarajectory/core/model/canvas_tool_mode.py17
0
100%
scarajectory/core/model/itrajectory_plan.py31
0
100%
scarajectory/core/model/plan_history.py34
1
97%
scarajectory/core/model/point_dto.py18
0
100%
scarajectory/core/model/scara_bounds.py18
0
100%
scarajectory/core/model/stream_config_dto.py15
0
100%
scarajectory/core/model/stream_progress.py25
3
88%
scarajectory/core/model/stream_state.py17
0
100%
scarajectory/core/model/trajectory_metrics.py37
7
81%
scarajectory/core/model/trajectory_plan.py100
14
86%
scarajectory/core/model/trajectory_serializer.py29
0
100%
scarajectory/core/model/validation_result_dto.py15
0
100%
scarajectory/core/model/viewport_transform.py48
0
100%
scarajectory/core/model/waypoint.py42
4
90%
scarajectory/core/service/__init__.py9
0
100%
scarajectory/core/service/engine.py45
3
93%
scarajectory/core/service/iplan_storage_service.py16
0
100%
scarajectory/core/service/iservice.py26
0
100%
scarajectory/core/service/istream_observer.py15
0
100%
scarajectory/core/service/itrajectory_observer.py14
0
100%
scarajectory/core/service/itrajectory_streamer.py25
0
100%
scarajectory/core/service/itrajectory_validator.py18
0
100%
scarajectory/core/service/plan_storage_service.py17
0
100%
scarajectory/core/service/trajectory_validator.py69
9
87%
scarajectory/engine.py64
30
53%
scarajectory/infrastructure/__init__.py9
0
100%
scarajectory/infrastructure/cli/__init__.py9
0
100%
scarajectory/infrastructure/cli/engine.py39
7
82%
scarajectory/infrastructure/cli/icli.py15
0
100%
scarajectory/infrastructure/cli/setup/__init__.py9
0
100%
scarajectory/infrastructure/cli/setup/bundle.py22
1
95%
scarajectory/infrastructure/cli/setup/dep_validator.py36
5
86%
scarajectory/infrastructure/cli/setup/dependencies.py18
0
100%
scarajectory/infrastructure/cli/setup/factory.py37
1
97%
scarajectory/infrastructure/cli/setup/keys.py28
0
100%
scarajectory/infrastructure/cli/setup/opt_validator.py36
5
86%
scarajectory/infrastructure/cli/setup/options.py17
0
100%
scarajectory/infrastructure/cli/setup/registry.py24
1
96%
scarajectory/infrastructure/cli/setup/validator.py43
5
88%
scarajectory/infrastructure/command/__init__.py9
0
100%
scarajectory/infrastructure/command/command.py16
0
100%
scarajectory/infrastructure/command/icommand_definition.py14
0
100%
scarajectory/infrastructure/command/icommand_executor.py14
0
100%
scarajectory/infrastructure/command/studio_command_definition.py24
1
96%
scarajectory/infrastructure/command/studio_command_executor.py38
15
61%
scarajectory/infrastructure/communication/__init__.py9
0
100%
scarajectory/infrastructure/communication/protocol/__init__.py8
0
100%
scarajectory/infrastructure/communication/protocol/command_formatter.py58
9
84%
scarajectory/infrastructure/communication/protocol/command_templates.py35
2
94%
scarajectory/infrastructure/communication/protocol/protocol_parser.py64
17
73%
scarajectory/infrastructure/communication/protocol/robot_response_dto.py17
0
100%
scarajectory/infrastructure/communication/serial_port_scanner.py36
7
81%
scarajectory/infrastructure/communication/serial_streamer.py150
83
45%
scarajectory/infrastructure/communication/stream_session.py18
0
100%
scarajectory/infrastructure/communication/transport/__init__.py8
0
100%
scarajectory/infrastructure/communication/transport/itransport.py19
0
100%
scarajectory/infrastructure/communication/transport/serial_transport.py104
63
39%
scarajectory/infrastructure/communication/transport/tcp_transport.py120
80
33%
scarajectory/infrastructure/gui/__init__.py9
0
100%
scarajectory/infrastructure/gui/canvas.py170
92
46%
scarajectory/infrastructure/gui/components/__init__.py9
0
100%
scarajectory/infrastructure/gui/components/canvas_renderer.py79
23
71%
scarajectory/infrastructure/gui/components/canvas_tool_handler.py42
0
100%
scarajectory/infrastructure/gui/components/jog_tab.py67
8
88%
scarajectory/infrastructure/gui/components/menu_bar.py75
14
81%
scarajectory/infrastructure/gui/components/preview_tab.py32
4
88%
scarajectory/infrastructure/gui/components/serial_console.py34
6
82%
scarajectory/infrastructure/gui/components/stream_status_bar.py29
4
86%
scarajectory/infrastructure/gui/components/streamer_tab.py96
31
68%
scarajectory/infrastructure/gui/components/toolbar.py73
9
88%
scarajectory/infrastructure/gui/components/validation_tab.py35
5
86%
scarajectory/infrastructure/gui/components/waypoint_editor.py71
17
76%
scarajectory/infrastructure/gui/controls.py44
3
93%
scarajectory/infrastructure/gui/engine.py98
19
81%
scarajectory/infrastructure/gui/icanvas.py20
0
100%
scarajectory/infrastructure/gui/icontrols.py16
0
100%
scarajectory/infrastructure/gui/igui.py17
0
100%
scarajectory/infrastructure/gui/itable.py14
0
100%
scarajectory/infrastructure/gui/table.py77
29
62%
scarajectory/infrastructure/gui/theme.py58
0
100%
scarajectory/setup/__init__.py9
0
100%
scarajectory/setup/bundle.py25
1
96%
scarajectory/setup/dep_validator.py36
5
86%
scarajectory/setup/dependencies.py21
0
100%
scarajectory/setup/factory.py84
4
95%
scarajectory/setup/keys.py37
0
100%
scarajectory/setup/opt_validator.py36
5
86%
scarajectory/setup/options.py20
0
100%
scarajectory/setup/registry.py34
1
97%
scarajectory/setup/validator.py53
5
91%
Total
3455
658
81%
</details>
🛠 Usage
Install package
pip3 install scarajectory
Prepare main entry point by downloading main.py or create your own.
wget -O main.py https://raw.githubusercontent.com/vroncevic/scarajectory/main/main.py
CLI Command Options
Launch the graphical studio with default configuration:
python3 main.py studio
Launch with initial trajectory plan file and disabled deadzone restriction:
python3 main.py studio --file ./trajectories/rectangle_demo.json --dead-zone disable --verbose enable
Option
Type
Choices
Description
--filestrFile path
Path to initial trajectory JSON plan file to load on startup.
--dead-zonestrenable, disableEnable or disable inner deadzone geometric validation ($R_{min}$).
--verbosestrenable, disableEnable or disable verbose ATS operational logging.
Interactive Motion Planning Workflow
- Design Trajectory & Geometry:
- Use Point, Line, Rectangle, Circle, or Freehand tools directly on the interactive vector canvas.
- Fine-tune Cartesian parameters ($X, Y, Z, \phi, \text{speed}$) using the Waypoint Data Table or interactive vertex drag.
- Kinematic Validation:
- Open the Plan Validation tab and run validation against reachability limits ($L_1 = 150\text{ mm}, L_2 = 120\text{ mm}$).
- Verify total path length and estimated execution time.
- ASCII Program Preview:
- Inspect the formatted ASCII micro-command stream (
<pt#...#end>) under the Program Preview tab.
- Hardware Streaming & Execution:
- Connect to
/dev/ttyACM0 (or TCP host) under the Hardware Streamer tab.
- Trigger streaming to execute real-time motion on the physical SCARA robot.
- Manual Jogging & Diagnostics:
- Use the Manual Jog tab for directional jog movements, vacuum pump activation, release valve triggers, and homing.
📚 Docs
More documentation and info at
👥 Contributing
📄 Copyright and licence
Copyright (C) 2026 by vroncevic.github.io/scarajectory
scarajectory is free software; you can redistribute it and/or modify
it under the same terms as Python itself, either Python version 3.x or,
at your option, any later version of Python 3 you may have available.
Special thanks to Google and the Google developer ecosystem for their tremendous support and innovative tools from the Google bundle that empowered the development and realization of this project. Google, you make this world a better place! 🌍✨
Lets help and support PSF.
scarajectory/__init__.pyscarajectory/core/__init__.pyscarajectory/core/model/__init__.pyscarajectory/core/model/canvas_interaction_state.pyscarajectory/core/model/canvas_settings_dto.pyscarajectory/core/model/canvas_tool_mode.pyscarajectory/core/model/itrajectory_plan.pyscarajectory/core/model/plan_history.pyscarajectory/core/model/point_dto.pyscarajectory/core/model/scara_bounds.pyscarajectory/core/model/stream_config_dto.pyscarajectory/core/model/stream_progress.pyscarajectory/core/model/stream_state.pyscarajectory/core/model/trajectory_metrics.pyscarajectory/core/model/trajectory_plan.pyscarajectory/core/model/trajectory_serializer.pyscarajectory/core/model/validation_result_dto.pyscarajectory/core/model/viewport_transform.pyscarajectory/core/model/waypoint.pyscarajectory/core/service/__init__.pyscarajectory/core/service/engine.pyscarajectory/core/service/iplan_storage_service.pyscarajectory/core/service/iservice.pyscarajectory/core/service/istream_observer.pyscarajectory/core/service/itrajectory_observer.pyscarajectory/core/service/itrajectory_streamer.pyscarajectory/core/service/itrajectory_validator.pyscarajectory/core/service/plan_storage_service.pyscarajectory/core/service/trajectory_validator.pyscarajectory/engine.pyscarajectory/infrastructure/__init__.pyscarajectory/infrastructure/cli/__init__.pyscarajectory/infrastructure/cli/engine.pyscarajectory/infrastructure/cli/icli.pyscarajectory/infrastructure/cli/setup/__init__.pyscarajectory/infrastructure/cli/setup/bundle.pyscarajectory/infrastructure/cli/setup/dep_validator.pyscarajectory/infrastructure/cli/setup/dependencies.pyscarajectory/infrastructure/cli/setup/factory.pyscarajectory/infrastructure/cli/setup/keys.pyscarajectory/infrastructure/cli/setup/opt_validator.pyscarajectory/infrastructure/cli/setup/options.pyscarajectory/infrastructure/cli/setup/registry.pyscarajectory/infrastructure/cli/setup/validator.pyscarajectory/infrastructure/command/__init__.pyscarajectory/infrastructure/command/command.pyscarajectory/infrastructure/command/icommand_definition.pyscarajectory/infrastructure/command/icommand_executor.pyscarajectory/infrastructure/command/studio_command_definition.pyscarajectory/infrastructure/command/studio_command_executor.pyscarajectory/infrastructure/communication/__init__.pyscarajectory/infrastructure/communication/protocol/__init__.pyscarajectory/infrastructure/communication/protocol/command_formatter.pyscarajectory/infrastructure/communication/protocol/command_templates.pyscarajectory/infrastructure/communication/protocol/protocol_parser.pyscarajectory/infrastructure/communication/protocol/robot_response_dto.pyscarajectory/infrastructure/communication/serial_port_scanner.pyscarajectory/infrastructure/communication/serial_streamer.pyscarajectory/infrastructure/communication/stream_session.pyscarajectory/infrastructure/communication/transport/__init__.pyscarajectory/infrastructure/communication/transport/itransport.pyscarajectory/infrastructure/communication/transport/serial_transport.pyscarajectory/infrastructure/communication/transport/tcp_transport.pyscarajectory/infrastructure/gui/__init__.pyscarajectory/infrastructure/gui/canvas.pyscarajectory/infrastructure/gui/components/__init__.pyscarajectory/infrastructure/gui/components/canvas_renderer.pyscarajectory/infrastructure/gui/components/canvas_tool_handler.pyscarajectory/infrastructure/gui/components/jog_tab.pyscarajectory/infrastructure/gui/components/menu_bar.pyscarajectory/infrastructure/gui/components/preview_tab.pyscarajectory/infrastructure/gui/components/serial_console.pyscarajectory/infrastructure/gui/components/stream_status_bar.pyscarajectory/infrastructure/gui/components/streamer_tab.pyscarajectory/infrastructure/gui/components/toolbar.pyscarajectory/infrastructure/gui/components/validation_tab.pyscarajectory/infrastructure/gui/components/waypoint_editor.pyscarajectory/infrastructure/gui/controls.pyscarajectory/infrastructure/gui/engine.pyscarajectory/infrastructure/gui/icanvas.pyscarajectory/infrastructure/gui/icontrols.pyscarajectory/infrastructure/gui/igui.pyscarajectory/infrastructure/gui/itable.pyscarajectory/infrastructure/gui/table.pyscarajectory/infrastructure/gui/theme.pyscarajectory/setup/__init__.pyscarajectory/setup/bundle.pyscarajectory/setup/dep_validator.pyscarajectory/setup/dependencies.pyscarajectory/setup/factory.pyscarajectory/setup/keys.pyscarajectory/setup/opt_validator.pyscarajectory/setup/options.pyscarajectory/setup/registry.pyscarajectory/setup/validator.pypip3 install scarajectory
wget -O main.py https://raw.githubusercontent.com/vroncevic/scarajectory/main/main.py
python3 main.py studio
python3 main.py studio --file ./trajectories/rectangle_demo.json --dead-zone disable --verbose enable
--filestr--dead-zonestrenable, disable--verbosestrenable, disable- Use Point, Line, Rectangle, Circle, or Freehand tools directly on the interactive vector canvas.
- Fine-tune Cartesian parameters ($X, Y, Z, \phi, \text{speed}$) using the Waypoint Data Table or interactive vertex drag.
- Open the Plan Validation tab and run validation against reachability limits ($L_1 = 150\text{ mm}, L_2 = 120\text{ mm}$).
- Verify total path length and estimated execution time.
- Inspect the formatted ASCII micro-command stream (
<pt#...#end>) under the Program Preview tab.
- Connect to
/dev/ttyACM0(or TCP host) under the Hardware Streamer tab. - Trigger streaming to execute real-time motion on the physical SCARA robot.
- Use the Manual Jog tab for directional jog movements, vacuum pump activation, release valve triggers, and homing.
